Experiment Control System

The control systems of the four LHC experiments have been developed in common within the Joint COntrols Project (JCOP).

LHCb's Experiment Control System is in charge of the configuration, control and monitoring of all the components of the online system. This includes all devices in the areas of: data acquisition, detector control (ex slow controls), trigger, timing and the interaction with the outside world.

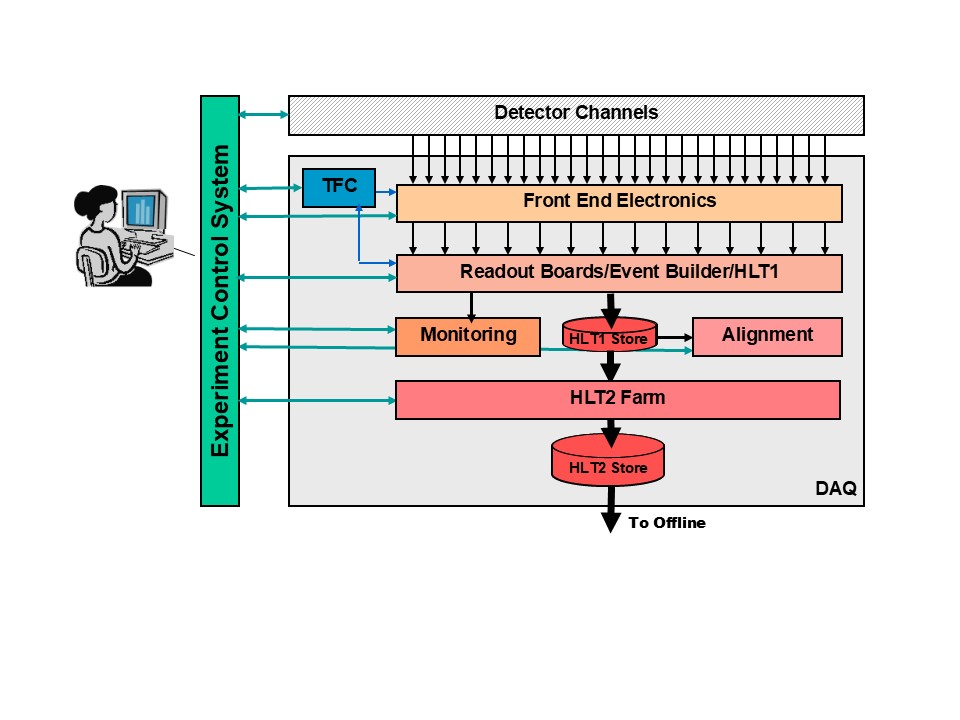

ECS Scope



Framework

The central ECS team provides a framework to the sub-detectors groups which need to configure and develop the specific control functions for their sub-detector. The control framework is based on a SCADA (Supervisory Control and Data Acquisition) system called WinCC-OA (Ex PVSS II) and it will have to be interfaced to all experimental equipment.
